CGS2536V Datasheet, Drivers, National Semiconductor

CGS2536V Features

  • Drivers Y Y Y Y Y Y Y Y Y Y Y Guaranteed 1 0 ns rise and fall times while driving 12 inches of 50X microstrip terminated with 25 pF 350 ps pin-to-pin skew (tOSLH and tOSHL) 650 ps part-to-pa

PDF File Details

Part number:

CGS2536V

Manufacturer:

National Semiconductor

File Size:

127.42kb

Download:

📄 Datasheet

Description:

Commercial/ industrial quad 1 to 4 clock drivers. These Clock Generation and Support clock drivers are specifically designed for driving memory arrays requiring large fanouts while op

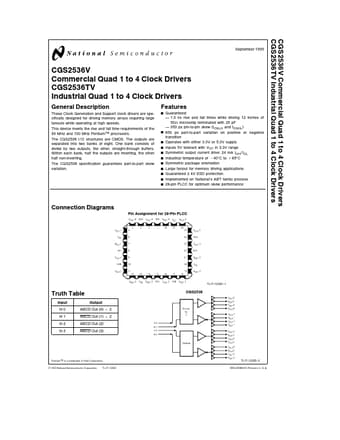

Datasheet Preview: CGS2536V 📥 Download PDF (127.42kb)
Page 2 of CGS2536V Page 3 of CGS2536V

CGS2536V Application

  • Applications Guaranteed 2 kV ESD protection Implemented on National’s ABT family process 28-pin PLCC for optimum skew performance Connection Diagra
