LM317L Datasheet - National Semiconductor

3-Terminal Adjustable Regulator

LM317L Features

* Adjustable output down to 1.2V Guaranteed 100 mA output current Line regulation typically 0.01%V Load regulation typically 0.1% Current limit constant with temperature Eliminates the need to stock many voltages Standard 3-lead transistor package 80 dB ripple rejection Available in TO-92, SO-8, or 6-

LM317L General Description

The LM317L is an adjustable 3-terminal positive voltage regulator capable of supplying 100mA over a 1.2V to 37V output range. It is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regu.

LM317L Datasheet (442.51 KB)

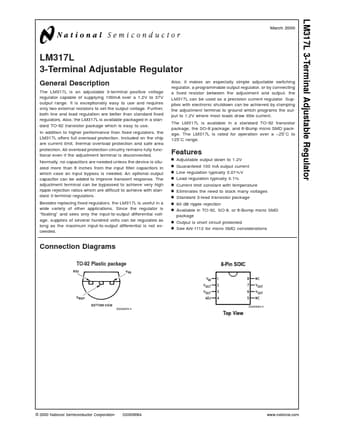

LM317L Datasheet Preview — Preview of LM317L PDF

Datasheet Details

Part number:

LM317L

Manufacturer:

National Semiconductor

File Size:

442.51 KB

Description:

3-terminal adjustable regulator.
