LM317L-N - 100-mA Adjustable Voltage Regulator

Datasheet Summary

Description

The LM317L-N is an adjustable positive voltage regulator capable of supplying 100 mA over a 1.2-V to 37-V output range.

The LM317L-N is easy to use and requires only two external resistors to set the output voltage.

Both line and load regulation are better than standard fixed regulators.

Features

1 Adjustable Output Down to 1.2 V.
100-mA Output Current.
Capable of Handling up to 40V VIN.
Line Regulation Typically 0.01% /V.
Load Regulation Typically 0.1% /A.
No Output Capacitor Required (†).
Current Limit Constant With Temperature.
Eliminates the Need to Stock Many Voltages.
Standard 3-Lead Transistor Package.
80-dB Ripple Rejection.
Available in 3-Pin TO-92, 8-Pin SOIC, or 6-pin DSBGA Packa.

Datasheet Details

Part number	LM317L-N
Manufacturer	Texas Instruments
File Size	1.82 MB
Description	100-mA Adjustable Voltage Regulator
Datasheet	LM317L-N Datasheet

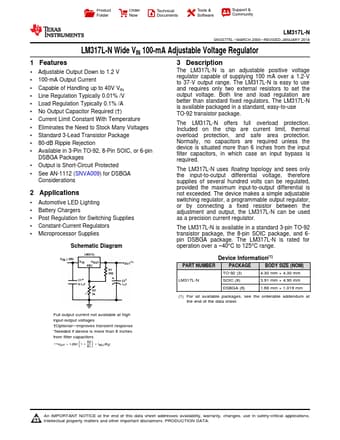

Additional preview pages of the LM317L-N datasheet.
