LM317LD - 3-Terminal 100mA Positive Adjustable Regulator

This page provides the datasheet information for the LM317LD, a member of the LM317LTA 3-Terminal 100mA Positive Adjustable Regulator family.

Datasheet Summary

Description

This monolithic integrated circuit is an adjustable 3terminal positive voltage regulator designed to supply more than 100mA of load current with an output voltage adjustable over a 1.2 to 37V.

It employs internal current limiting, thermal shut-down and safe area compensation.

Features

  • Output Current Excess of 100mA.
  • Output Adjustable Between 1.2V and 37V.
  • Internal Thermal Overload Protection.
  • Internal Short-Circuit Current Limiting.
  • Output Transistor Safe-Area Compensation.
  • Moisture Sensitivity Level 3 TO-92 PKG (Straight) (Bent) SOT-89 PKG.

📥 Download Datasheet

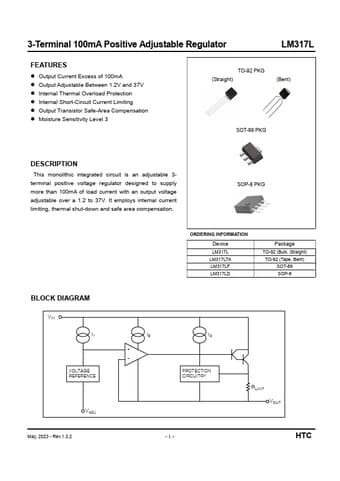

Datasheet preview – LM317LD
