LM324N - Quad Operational Amplifiers

This page provides the datasheet information for the LM324N, a member of the LM324 Quad Operational Amplifiers family.

Datasheet Summary

Description

The LM324 consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.

Features

  • Wide range of supply voltages.
  • Low supply current drain independent of supply voltage.
  • Low input biasing current.
  • Low input offset current.
  • Low input offset voltage.
  • Input common-mode voltage range includes GND.
  • Differential input voltage range equal to the power supply voltage.
  • DC voltage gain 100V/mV Typ.
  • Internally frequency compensation.

📥 Download Datasheet

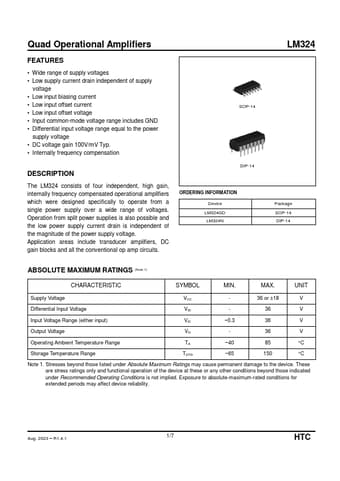

Datasheet preview – LM324N

Datasheet Details

Part number LM324N
Manufacturer HTC
File Size 471.23 KB
Description Quad Operational Amplifiers
Datasheet download datasheet LM324N Datasheet
Additional preview pages of the LM324N datasheet.

📁 Similar Datasheet

  • LM324N - Single Supply Quad Operational Amplifier (ON Semiconductor)
  • LM324N - Quadruple Operational Amplifier (Texas Instruments)
  • LM324N - Quad Low Power Operational Amplifier (Motorola)
  • LM324N - Quad Operational Amplifier (Fairchild Semiconductor)
  • LM324 - Quad Low Power Operational Amplifier (Motorola Inc)
  • LM324 - Low Power Quad Operational Amplifiers (National Semiconductor)
  • LM324 - Quad Operational Amplifier (Fairchild Semiconductor)
  • LM324 - QUAD OPERATIONAL AMPLIFIERS (UTC)
  • LM324 - Single Supply Quad Operational Amplifier (ON Semiconductor)
  • LM324 - Low-power quad operational amplifiers (STMicroelectronics)
Other Datasheets by HTC
  • LM324 - Quad Operational Amplifiers
  • LM324GD - Quad Operational Amplifiers
  • LM317LD - 3-Terminal 100mA Positive Adjustable Regulator
  • LM317LF - 3-Terminal 100mA Positive Adjustable Regulator
  • LM317LTA - 3-Terminal 100mA Positive Adjustable Regulator
  • LM336 - 2.5V/ 5.0V Reference Diode
  • LM339 - QUAD Comparator
  • LM358GN - Dual Operational Amplfiers

Full PDF Text Transcription

Click to expand full text
Quad Operational Amplifiers FEATURES • Wide range of supply voltages • Low supply current drain independent of supply voltage • Low input biasing current • Low input offset current • Low input offset voltage • Input common-mode voltage range includes GND • Differential input voltage range equal to the power supply voltage • DC voltage gain 100V/mV Typ. • Internally frequency compensation DESCRIPTION The LM324 consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
