NT3882 Datasheet - Novatek

NT3882, Dot Matrix LCD 40-Channel Driver

The NT3882 is a dot matrix LCD 40 channel driver fabricated by low power CMOS technology. This IC consists of two 20-bit shift registers, a 40-bit latch, and a 40-bit 4 level LCD driver. The NT3882 converts serial data which is received from the LCD controller Pin Configuration SSSSS SSSSSS N 3 3.

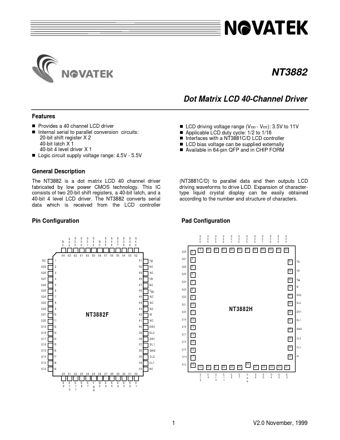

Datasheet Preview Page 1

NT3882-Novatek.pdf

NT3882 Datasheet Preview — Preview of NT3882 PDF

NT3882 Datasheet Preview Page 2

NT3882 Datasheet Preview Page 3

Datasheet Details

Part number:

NT3882

Manufacturer:

Novatek

File Size:

86.59 KB

Description:

Dot Matrix LCD 40-Channel Driver
