NT332 - PNP silicon transistor

AUK

📥 Download Datasheet

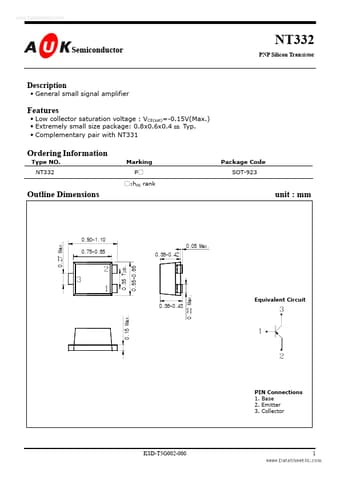

NT332 Datasheet Preview — Preview of NT332 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NT332
Manufacturer: AUK
File Size: 312.56 KB
Datasheet: NT332_AUK.pdf
Description: PNP silicon transistor

NT332 Product details

Description

General small signal amplifier

Features

Low collector saturation voltage : VCE(sat)=-0.15V(Max. ).
Extremely small size package: 0.8x0.6x0.4 ㎜ Typ.
Complementary pair with NT331 Ordering Information Type NO. NT332 Marking P.
:hFE rank Package Code SOT-923 Outline Dimensions unit : mm 0.27 Max. 0.90~1.10 0.05 Max. 0.75~0.85 0.35 Typ. 0.55~0.65 0.36~0.42 0.22 Max. Equivalent Circuit 0.36~0.43 0.15 Max. PIN Connections 1. Base 2. Emitter 3. Collector KSD-T5G002-000 1 www. DataShe.
