NT354 - PNP Silicon Transistor

Product Overview

AUK

📥 Download Datasheet

NT354 PNP Silicon Transistor by AUK - Datasheet Preview — Datasheet preview – NT354

Datasheet Details

Part number	NT354
Manufacturer	AUK
File Size	245.45 KB
Description	PNP Silicon Transistor
Datasheet	NT354 Datasheet

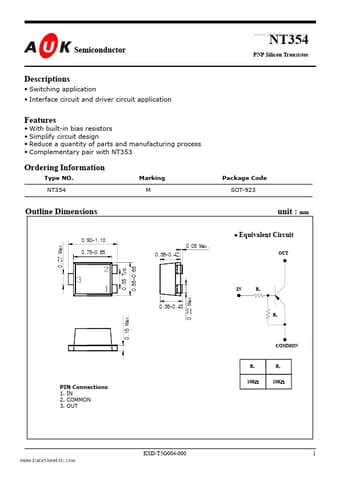

Additional preview pages of the NT354 datasheet.

Product details

Description

Switching application Interface circuit and driver circuit application

Features

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary pair with NT353 Ordering Information Type NO. NT354 Marking M Package Code SOT-923 Outline Dimensions 0.90~1.10 0.05 Max. 0.75~0.85 0.35 Typ. 0.55~0.65 unit : mm.
Equivalent Circuit 0.36~0.42 OUT 0.27 Max. IN R1 0.36~0.43 0.15 Max. 0.22 Max. R2 COMMON R1 10KΩ R2 10KΩ PIN Connections 1. IN 2. COMMON 3. OUT KSD-T5G004.
