NT353 - NPN Silicon Transistor

Product Overview

AUK

📥 Download Datasheet

NT353 NPN Silicon Transistor by AUK - Datasheet Preview — Datasheet preview – NT353

Datasheet Details

Part number	NT353
Manufacturer	AUK
File Size	246.70 KB
Description	NPN Silicon Transistor
Datasheet	NT353 Datasheet
Additional preview pages of the NT353 datasheet.

Product details

Description

Switching application Interface circuit and driver circuit application

Features

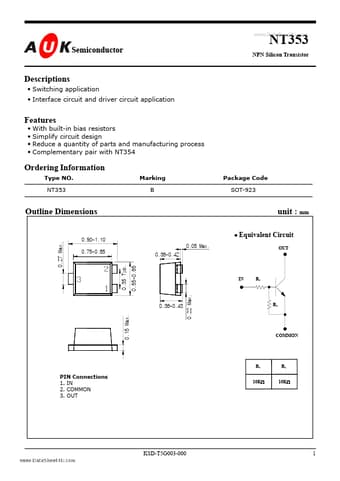

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary pair with NT354 Ordering Information Type NO. NT353 Marking B Package Code SOT-923 Outline Dimensions 0.90~1.10 0.05 Max. 0.75~0.85 0.35 Typ. 0.55~0.65 unit : mm.
Equivalent Circuit OUT 0.27 Max. 0.36~0.42 IN R1 0.22 Max. 0.36~0.43 0.15 Max. R2 COMMON R1 R2 10KΩ PIN Connections 1. IN 2. COMMON 3. OUT 10KΩ KSD-T5G0.
