NCV33074, NCV3304A Single Supply 3.0 V to 44 V Operational Amplifiers

NCV33074 Description

Single Supply 3.0 V to 44 V Operational Amplifiers MC34071,2,4,A MC33071,2,4,A, NCV33072,4,A Quality bipolar fabrication with innovative design concep.

NCV33074 Features

* Wide Bandwidth: 4.5 MHz
* High Slew Rate: 13 V/ms
* Fast Settling Time: 1.1 ms to 0.1%
* Wide Single Supply Operation: 3.0 V to 44 V
* Wide Input Common Mode Voltage Range: Includes Ground (VEE)
* Low Input Offset Voltage: 3.0 mV Maximum (A Suffix)

NCV33074 Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q100 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant DATA SHEET www. onsemi. com 8 1 SOIC
* 8 D SUFFIX CASE 751 WQFN10 MT SUFFIX CASE 510AJ 14 1 SOIC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NCV33074, NCV3304A. Please refer to the document for exact specifications by model.

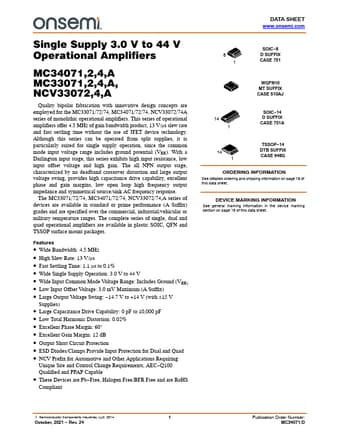

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCV33074, NCV3304A
Manufacturer
ON Semiconductor ↗
File Size
469.54 KB
Datasheet
NCV3304A_ONSemiconductor.pdf
Description
Single Supply 3.0 V to 44 V Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: NCV33074, NCV3304A.
Please refer to the document for exact specifications by model.
