MMVL3401 - SURFACE MOUNT PIN DIODE

Features

  • Very low series resistance at 100MHz (0.45 Ω typical@IF=10mA) .054(1.35) .045(1.15) .078(1.95) .068(1.75) 35 Volts POWER 200 mW SOD-323 Unit: inch (mm) .014(.35) Surface mount package ideally suited for automatic insertion Pb free product are available : 99% Sn above can meet RoHS environment substance directive request .009(.25) Low capacitance (0.8pF typical@VR=20V) .038(.95) .027(.70) .006(.15) .107(2.7) .090(2.3).

📥 Download Datasheet

📁 Similar Datasheet

  • MMVL3401T1 - Silicon Pin Diode (LRC)
  • MMVL3401T1 - Silicon Pin Diode (ON Semiconductor)
  • MMVL3102T1 - Silicon Tuning Diode (LRC)
  • MMVL3102T1 - Silicon Tuning Diode (ON Semiconductor)
  • MMVL3700T1 - High Voltage Silicon Pin Diode (LRC)
  • MMVL3700T1 - High Voltage Silicon Pin Diode (ON Semiconductor)
  • MMVL105GT1 - VOLTAGE VARIABLE CAPACITANCE DIODE (ON Semiconductor)
  • MMVL105GT1 - Silicon Tuning Diode (LRC)
  • MMVL109T1 - Silicon Epicap Diode (LRC)
  • MMVL109T1 - Silicon Epicap Diodes (ON Semiconductor)
Other Datasheets by Pan Jit International

Full PDF Text Transcription

Click to expand full text

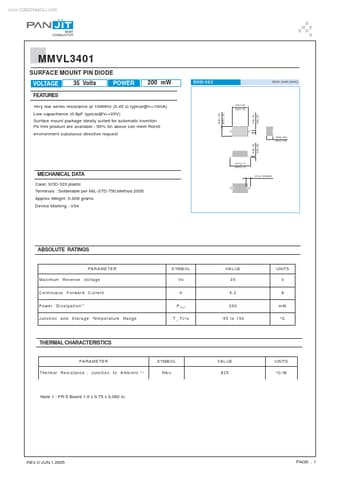

www.DataSheet4U.com MMVL3401 SURFACE MOUNT PIN DIODE VOLTAGE FEATURES Very low series resistance at 100MHz (0.45 Ω typical@IF=10mA) .054(1.35) .045(1.15) .078(1.95) .068(1.75) 35 Volts POWER 200 mW SOD-323 Unit: inch (mm) .014(.35) Surface mount package ideally suited for automatic insertion Pb free product are available : 99% Sn above can meet RoHS environment substance directive request .009(.25) Low capacitance (0.8pF typical@VR=20V) .038(.95) .027(.70) .006(.15) .107(2.7) .090(2.3) MECHANICAL DATA Case: SOD-323 plastic Terminals : Solderable per MIL-STD-750,Method 2026 Approx Weight: 0.008 grams Device Marking : V34 .012(.30)MIN.
