74LV154 - 4-to-16 line decoder/demultiplexer

Description

The 74LV154 is a low-voltage CMOS device and is pin and function compatible with 74HC/HCT154.

The 74LV154 decoders accept four active HIGH binary address inputs (A0 to A3) and provide 16 mutually exclusive active LOW outputs(Y0 to Y15).

Features

  • Optimized for low voltage.

📥 Download Datasheet

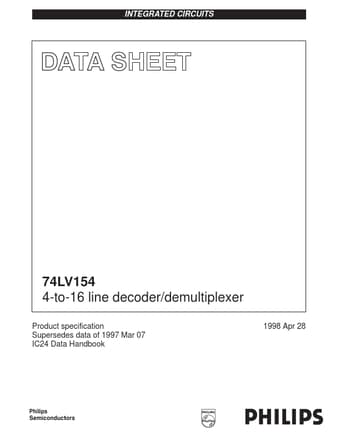

Datasheet preview – 74LV154

Datasheet Details

Part number 74LV154
Manufacturer Philips
File Size 131.12 KB
Description 4-to-16 line decoder/demultiplexer
Datasheet download datasheet 74LV154 Datasheet
Additional preview pages of the 74LV154 datasheet.

📁 Similar Datasheet

  • 74LV153 - Dual 4-input multiplexer (NXP)
  • 74LV123 - Dual retriggerable monostable multivibrator (nexperia)
  • 74LV123D - Dual retriggerable monostable multivibrator (nexperia)
  • 74LV132 - Quad 2-input NAND Schmitt trigger (nexperia)
  • 74LV132-Q100 - Quad 2-input NAND Schmitt trigger (nexperia)
  • 74LV132A - QUADRUPLE 2-INPUT NAND GATES (Diodes)
  • 74LV132AS14 - QUADRUPLE 2-INPUT NAND GATES (Diodes)
  • 74LV132AT14 - QUADRUPLE 2-INPUT NAND GATES (Diodes)
  • 74LV132D - Quad 2-input NAND Schmitt trigger (nexperia)
  • 74LV138 - 3-to-8 line decoder/demultiplexer (NXP)
Other Datasheets by Philips
  • 74LV153 - Dual 4-input multiplexer
  • 74LV157 - Quad 2-input multiplexer
  • 74LV10 - Triple 3-input NAND gate
  • 74LV107 - Dual JK flip-flop
  • 74LV109 - Dual JK flip-flop
  • 74LV11 - Triple 3-input AND gate
  • 74LV123 - Dual retriggerable monostable multivibrator
  • 74LV125 - Quad buffer/line driver

Full PDF Text Transcription

Click to expand full text
INTEGRATED CIRCUITS 74LV154 4-to-16 line decoder/demultiplexer Product specification Supersedes data of 1997 Mar 07 IC24 Data Handbook 1998 Apr 28 Philips Semiconductors Philips Semiconductors Product specification 4-to-16 line decoder/demultiplexer 74LV154 FEATURES • Optimized for low voltage applications: 1.0 to 3.6 V • Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V • Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V, • Typical VOHV (output VOH undershoot) > 2 V at VCC = 3.3 V, • 16-line demultiplexing capability • Decodes 4 binary-coded inputs into one of 16 mutually • 2-input enable gate for strobing or expansion • Output capability: standard • ICC category: MSI QUICK REFERENCE DATA GND = 0 V; Tamb = 25°C; tr = tf ≤ 2.
