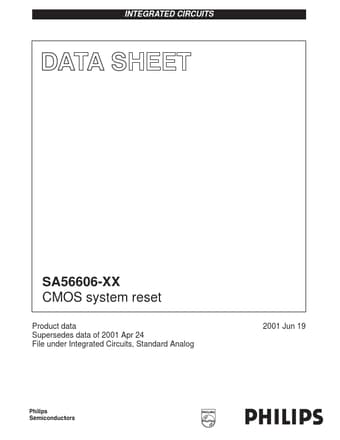

SA56606-28, SA5 Datasheet - Philips

SA56606-28, SA5, CMOS system reset

The SA56606-XX is a CMOS device designed to generate a reset signal for a variety of microprocessor and logic systems. Accurate reset signals are generated during momentary power interruptions or whenever power supply voltages sag to intolerable levels. An Open Drain output topology is incorporated .

SA5-6606.pdf

SA56606-28 Datasheet Preview — This datasheet PDF includes multiple part numbers: SA56606-28, SA5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SA56606-28, SA5

Manufacturer:

Philips

File Size:

122.62 KB

Description:

CMOS system reset

Note:

This datasheet PDF includes multiple part numbers: SA56606-28, SA5.
Please refer to the document for exact specifications by model.

SA56606-28 Features

* 12 VDC maximum operating voltage

* CMOS N-channel Open Drain output

* Offered in reset thresholds of

* Available in SOT23-5 surface mount package SIMPLIFIED SYSTEM DIAGRAM VDD 2 VDD APPLICATIONS 2.0, 2.7, 2.8, 2.9, 3.0, 3.1, 4.2, 4.3, 4.4, 4.5, 4.6, 4.7 VDC
