QPA2598 Datasheet - Qorvo

QPA2598, 2.5W GaN Driver Amplifier

Qorvo’s QPA2598 is a packaged broadband driver amplifier fabricated on Qorvo’s QGaN15 0.15 um GaN on SiC process. Operating from 6 to 12 GHz, the QPA2598 achieves 2.5 W output power with a Power Added Efficiency of 30 % and harmonic suppression of -30dBc. Under nominal bias, it provides 22 dB small .

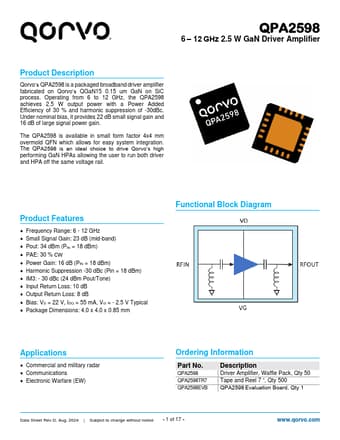

Datasheet Preview Page 1

QPA2598-Qorvo.pdf

QPA2598 Datasheet Preview — Preview of QPA2598 PDF

QPA2598 Datasheet Preview Page 2

QPA2598 Datasheet Preview Page 3

Datasheet Details

Part number:

QPA2598

Manufacturer:

Qorvo

File Size:

1.00 MB

Description:

2.5W GaN Driver Amplifier

QPA2598 Features

* Frequency Range: 6 - 12 GHz

* Small Signal Gain: 23 dB (mid-band)

* Pout: 34 dBm (PIN = 18 dBm)

* PAE: 30 % CW

* Power Gain: 16 dB (PIN = 18 dBm)

* Harmonic Suppression -30 dBc (Pin = 18 dBm)

* IM3: - 30 dBc (24 dBm Pout/Tone)

* Input
