QPA2626 - GaAs Low Noise Amplifier

QPA2626 Description

Applications * Satellite Communications * Point-to-Point Communications QPA2626 17-22 GHz GaAs Low Noise Amplifier Product .
Qorvo’s QPA2626 is a packaged, high-performance, low noise amplifier fabricated on Qorvo’s production 90nm pHEMT (QPHT09) process.

QPA2626 Features

* Frequency Range: 17
* 22 GHz
* Noise Figure: 1.3 dB (typical)
* Small Signal Gain: 25 dB (typical)
* P1dB: 20 dBm (typical)
* IM3:
* 55 dBc (typical) (Pout=0 dBm/tone)
* Bias: VD = 3.5 V, IDQ = 90 mA, VG =
* 0.46 V (typical)

QPA2626 Applications

* Satellite Communications

📥 Download Datasheet

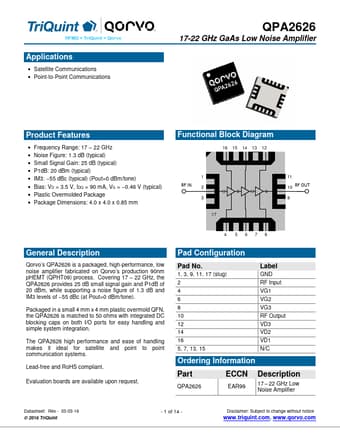

Preview of QPA2626 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QPA2626
Manufacturer
TriQuint Semiconductor
File Size
1.49 MB
Datasheet
QPA2626-TriQuintSemiconductor.pdf
Description
GaAs Low Noise Amplifier
