QPA2626D 17 - 23GHz Low Noise Amplifier

QPA2626D 17 23 GHz Low Noise Amplifier Product Overview Qorvo’s QPA2626D is a high-performance, low noise MMIC amplifier fabricated on Qorvo’s production 90nm pHEMT process (QPHT09). Covering 17 23 GHz, the QPA2626D provides 25 dB small signal gain and P1dB of 20 dBm, while supporting a noise figure of 1.3 dB and IM3 levels of 55 dBc (at Pout=0 dBm/tone). The QPA2626D is matched to 50 ohms with integrated DC blocking caps on both I/O ports for easy handling and simp.

QPA2626D Features

* Frequency Range: 17

* 23 GHz

* Noise Figure: 1.3 dB (typical)

* Small Signal Gain: 25 dB (typical)

* P1dB: 20 dBm (typical)

* IM3:

* 55 dBc (typical) (Pout=0 dBm/tone)

* Bias: VD = 3.5 V, IDQ = 90 mA, VG =

* 0.46 V (typical)

QPA2626D Datasheet (1.14 MB)

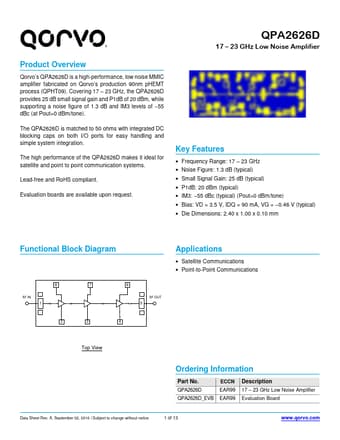

QPA2626D Datasheet Preview — Preview of QPA2626D PDF

Datasheet Details

Part number:

QPA2626D

Manufacturer:

Qorvo

File Size:

1.14 MB

Description:

17 - 23ghz low noise amplifier.
