QPA1001 Datasheet, Amplifier, qorvo

QPA1001 Features

  • Amplifier
  • Frequency Range: 3.1
      – 3.5 GHz
  • Pout: 48 dBm (PIN = 26 dBm, 3.3 GHz)
  • Large Signal Gain: 22 dB (PIN = 26

PDF File Details

Part number:

QPA1001

Manufacturer:

qorvo

File Size:

814.34kb

Download:

📄 Datasheet

Description:

Gan power amplifier. Qorvo’s QPA1001 is a high-power, S-band amplifier fabricated on Qorvo’s QGaN25 0.25um GaN on SiC production process. Covering 3.1-3.5

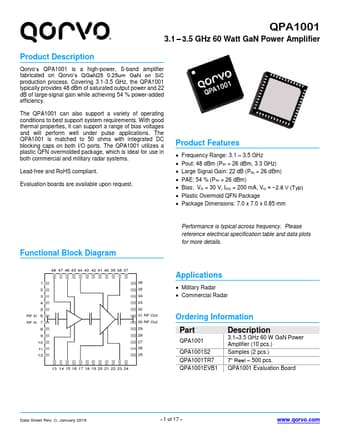

Datasheet Preview: QPA1001 📥 Download PDF (814.34kb)
Page 2 of QPA1001 Page 3 of QPA1001

QPA1001 Application

  • Applications The QPA1001 is matched to 50 ohms with integrated DC blocking caps on both I/O ports. The QPA1001 utilizes a plastic QFN overmolded pa
