QPA1010 Datasheet - Qorvo

QPA1010 - 15W GaN Power Amplifier

Qorvo’s QPA1010 is a X-band high power MMIC amplifier fabricated on Qorvo’s production 0.15um GaN on SiC process (QGaN15).

The QPA1010 operates from 7.9 * 11 GHz and typically provides 15 W saturated output power with power-added efficiency of 38% and large-signal gain of 18 dB.

This combina

QPA1010 Features

* Frequency Range: 7.9 

*  11 GHz

* POUT: 42 dBm at PIN = 24 dBm

* PAE: 38 % at PIN = 24 dBm

* Large Signal Gain: 18 dB at PIN = 24 dBm

* Small Signal Gain: 25 dB

* Integrated Power Detector

* Bias: VD = 24 V, IDQ = 600 mA

* Pulsed VD: PW =100 µS, DC = 10%

QPA1010-Qorvo.pdf

Preview of QPA1010 PDF

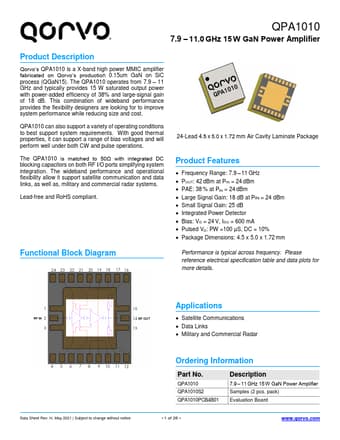

QPA1010 Datasheet Preview Page 2 QPA1010 Datasheet Preview Page 3
