QPA1003P Datasheet, Amplifier, Qorvo

QPA1003P Features

• Amplifier
• Frequency Range: 1 
    – 8 GHz
• POUT: 40 dBm (PIN = 15 dBm)
• PAE: 30 % (PIN = 15 dBm)
• Large Signal Gain: 25 dB (PIN = 15 dBm)

PDF File Details

Part number:

QPA1003P

Manufacturer:

Qorvo

File Size:

569.57kb

Download:

📄 Datasheet

Description:

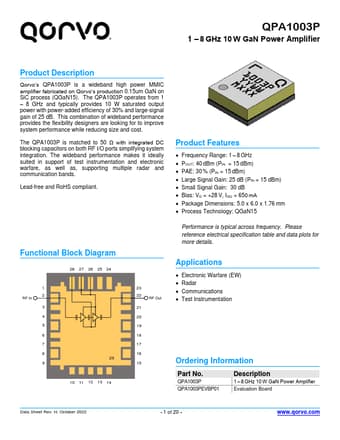

10w gan power amplifier. Qorvo’s QPA1003P is a wideband high power MMIC amplifier fabricated on Qorvo’s production 0.15um GaN on SiC process (QGaN15). The QPA

QPA1003P Application

• Applications
• Electronic Warfare (EW)
• Radar
• Communications
• Test Instrumentation Ordering Information Part N
