QPA1008 Datasheet - Qorvo

Variable Gain Driver Amplifier

QPA1008 Features

* Frequency Range: 2.7

* 3.8 GHz

* Small Signal Gain: 28 dB

* Input Return Loss: 16 dB

* Output Return Loss: 15 dB

* 32dB Attenuation Range

* P1dB: 31dBm

* Large Signal Gain: 26 dB

* P1dB PAE: 35 %

* Bias Switching Speed

QPA1008 General Description

Qorvo's QPA1008 is an S-band two stage variable gain driver amplifier in a 5x5 mm QFN. The QPA1008 operates from 2.7 to 3.8 GHz and provides 31dBm of P1dB output power with 26 dB of large signal gain and greater than 30% PAE. The QPA1008 includes a 30 dB attenuator at the input, and a simple resisti.

QPA1008 Datasheet (779.06 KB)

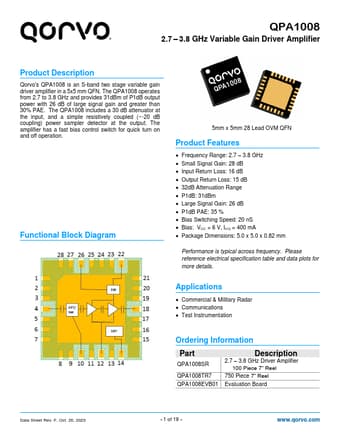

QPA1008 Datasheet Preview — Preview of QPA1008 PDF

Datasheet Details

Part number:

QPA1008

Manufacturer:

Qorvo

File Size:

779.06 KB

Description:

Variable gain driver amplifier.
