QPA4486A

Cascadable SiGe HBT Amplifier

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Qorvo QPA4486ATR13 (Alt: QPA4486ATR13) Avnet Silica 0 0
$0

QPA4486A Datasheet (720.19 KB)

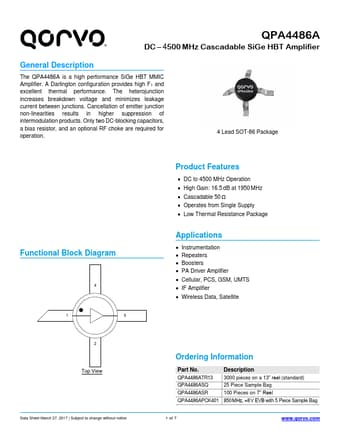

Preview of QPA4486A PDF Datasheet

Datasheet Details

Part number:

QPA4486A

Manufacturer:

qorvo

File Size:

720.19 KB

Description:

Cascadable sige hbt amplifier

QPA4486A Features

* DC to 4500 MHz Operation

* High Gain: 16.5 dB at 1950 MHz

* Cascadable 50 Ω

* Operates from Single Supply

* Low Thermal Resistance Package Applications

* Instrumentation

* Repeaters

* Boosters

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS

* IF Amplifi

QPA4486A General Description

The QPA4486A is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in highe.
