QPA4463A CASCADABLE SiGe HBT MMIC AMPLIFIER

Reference Designator Manufacturer Manufacturer's P/N Gain Block U1 QORVO QPA4463A PCB NA Viasystems Technologies Corp QPAXX63X-410(A) CAP, 1uF, 10%, 25V, X7R, 1206 C1 Murata Electronics GRM31MR71E105KA01L CAP, 1000pF, 10%, 50V, X7R, 0402 C2 Murata Electronics GRM155R71H102KA01D CAP, 6.

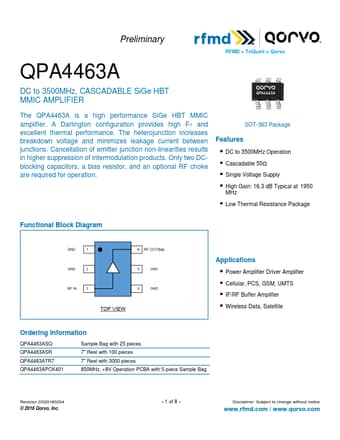

Preliminary QPA4463A RFMD + TriQuint = Qorvo DC to 3500MHz, CASCADABLE SiGe HBT MMIC AMPLIFIER The QPA4463A is a high performance SiGe HBT MMIC amplifier. A Darlington configuration provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only two DCblocking capacitors, a bias resistor, and an opt.

QPA4463A Features

* DC to 3500MHz Operation

* Cascadable 50Ω

* Single Voltage Supply

* High Gain: 16.3 dB Typical at 1950 MHz

* Low Thermal Resistance Package Functional Block Diagram Applications

* Power Amplifier Driver Amplifier

* Cellular, PCS, GSM, UMTS

* IF/RF Buffer Amplifier
