QPA4536 Datasheet, Amplifier, Qorvo

QPA4536 Features

  • Amplifier
  • Frequency Range: 24.2
      – 26.5 GHz
  • P1dB (PIN ≈ 14 dBm): 31.5 dBm
  • PSAT (PIN = 18 dBm): 33 dBm
  • Small Signal Gain: 18 dB
  • TOI

PDF File Details

Part number:

QPA4536

Manufacturer:

Qorvo

File Size:

1.43MB

Download:

📄 Datasheet

Description:

K-band power amplifier. 250 pieces on a 7” reel (standard) Evaluation Board Data sheet Rev. C, January 2024 | Subject to change without notice 1 of 24 © 202

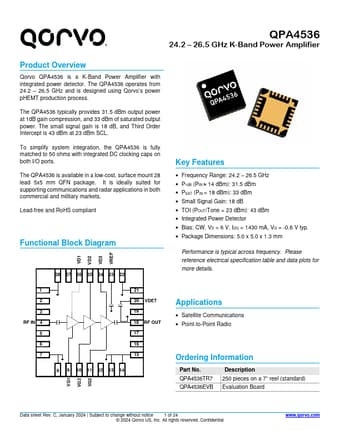

Datasheet Preview: QPA4536 📥 Download PDF (1.43MB)
Page 2 of QPA4536 Page 3 of QPA4536

QPA4536 Application

  • Applications in both commercial and military markets. Lead-free and RoHS compliant Functional Block Diagram VD1 VD2 VD3 VREF 28 27 26 25 24 23 22
