QPA4586A Datasheet - Qorvo

Cascadable SiGe HBT Amplifier

QPA4586A Features

* High Gain: 19.9 dB at 1950 MHz

* Cascadable 50 Ω

* Operates from Single Supply

* Low Thermal Resistance Package Applications

* Instrumentation

* Repeaters

* Boosters

* PA Driver Amplifier

* Cellular, PCS, GSM, UMTS

* I

QPA4586A General Description

The QPA4586A is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in highe.

QPA4586A Datasheet (683.57 KB)

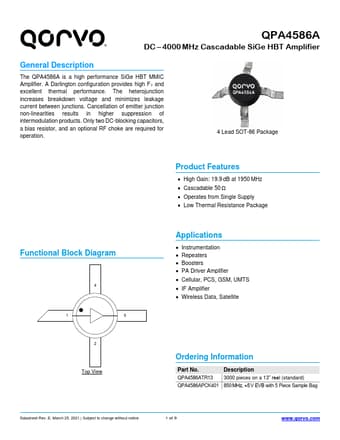

QPA4586A Datasheet Preview — Preview of QPA4586A PDF

Datasheet Details

Part number:

QPA4586A

Manufacturer:

Qorvo

File Size:

683.57 KB

Description:

Cascadable sige hbt amplifier.
