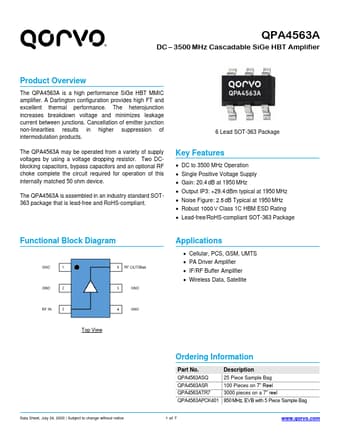

QPA4563A Datasheet, Amplifier, qorvo

QPA4563A Features

• Amplifier
• DC to 3500 MHz Operation
• Single Positive Voltage Supply
• Gain: 20.4 dB at 1950 MHz
• Output IP3: +29.4 dBm typical at 1950 MHz
• Noise Figur

PDF File Details

Part number:

QPA4563A

Manufacturer:

qorvo

File Size:

732.53kb

Download:

📄 Datasheet

Description:

Cascadable sige hbt amplifier. QPA4563ASQ 25 Piece Sample Bag QPA4563ASR 100 Pieces on 7” Reel QPA4563ATR7 3000 pieces on a 7” reel QPA4563APCK401 850 MHz, E

QPA4563A Application

• Applications
• Cellular, PCS, GSM, UMTS
• PA Driver Amplifier
• IF/RF Buffer Amplifier
• Wireless Data, Satellite T
