QPA4346D 6 Watt GaN Power Amplifier

QPA4346D 6 Watt GaN PA QPA4346DEVB Evaluation Board for QPA4346D Data Sheet Rev. D, January 2023 | Subject to change without notice 1 of 31 © 2023 Qorvo US, Inc. All rights reserved. Confidential www.qorvo.com Absolute Maximum Ratings Parameter Drain Voltage (VD) Value / Rang 29.e5 V Gate V.

QPA4346D 37.5 42.5 GHz 6 Watt GaN Power Amplifier Product Overview Qorvo's QPA4346D is a high power MMIC amplifier fabricated on Qorvo's production 0.15 um GaN on SiC process (QGaN15). It is targeted to the 37.5 - 42.5 GHz Satcom Q-V band. QPA4346D achieves 3 W linear power with 25 dBc third order intermodulation distortion products, and 16 dB small signal gain. It provides 6 W of saturated output power while achieving 20% power-added efficiency. To simplify system integration, the Q.

QPA4346D Features

* Frequency Range: 37.5

* 42.5 GHz

* PSAT (PIN = 26 dBm): 38 dBm

* PAE (PIN = 26 dBm): 20 %

* IM3 (POUT/Tone = 32 dBm): -25 dBc

* Small Signal Gain: 16 dB

* Bias: VD = 24 V, IDQ = 140 mA, VG = -2.3 V typ. range

* Die Dimensions: 4.2 x

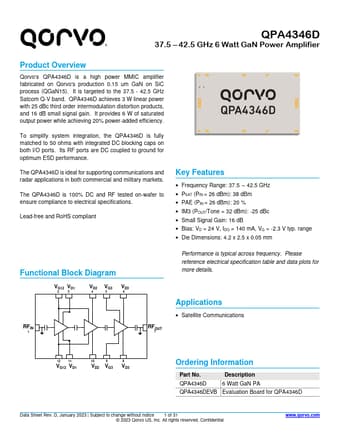

QPA4346D Datasheet (1.52 MB)

QPA4346D Datasheet Preview — Preview of QPA4346D PDF

Datasheet Details

Part number:

QPA4346D

Manufacturer:

Qorvo

File Size:

1.52 MB

Description:

6 watt gan power amplifier.
