QPA3240 Datasheet - RF Micro Devices

QPA3240 GaAs/GaN Power Doubler Hybrid

QPA3240 GaAs/GaN Power Doubler Hybrid 45MHz to 1218MHz RFMD + TriQuint = Qorvo QPA3240 The QPA3240 is a Hybrid Power Doubler amplifier module. The part employs GaAs pHEMT die and GaN HEMT die, has extremely high output capability, and is operated from 45MHz to 1218MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. DC current of the device can be externally adjusted for optimum distortion performance versus power consumption over a .

QPA3240 Features

* Excellent Linearity

* Superior Return Loss Performance

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under All Terminations

* 24.5dB Min. Gain at 1218MHz

* 480mA Max.

* Extra Pin For Current Adjustment Functional Block Diagram Applications

* 45MHz

QPA3240 Datasheet (443.00 KB)

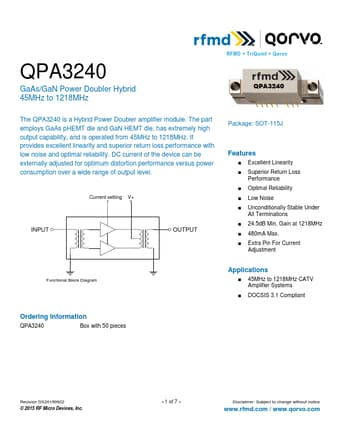

Preview of QPA3240 PDF
QPA3240 Datasheet Preview Page 2 QPA3240 Datasheet Preview Page 3

Datasheet Details

Part number:

QPA3240

Manufacturer:

RF Micro Devices

File Size:

443.00 KB

Description:

Gaas/gan power doubler hybrid.
