QPA3055P 100W S-Band GaN Power Amplifier

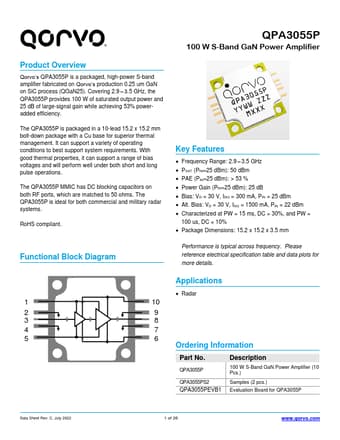

100 W S-Band GaN Power Amplifier (10 Pcs.) Samples (2 pcs.) Evaluation Board for QPA3055P Data Sheet Rev. C, July 2022 1 of 26 www.qorvo.com QPA3055P ® 100 W S-Band GaN Power Amplifier Absolute Maximum Ratings Recommended Operating Conditions Parameter Value / Range Drain Voltage (VD) 40.

QPA3055P ® 100 W S-Band GaN Power Amplifier Product Overview Qorvo’s QPA3055P is a packaged, high-power S-band amplifier fabricated on Qorvo’s production 0.25 um GaN on SiC process (QGaN25). Covering 2.9 3.5 GHz, the QPA3055P provides 100 W of saturated output power and 25 dB of large-signal gain while achieving 53% poweradded efficiency. The QPA3055P is packaged in a 10-lead 15.2 x 15.2 mm bolt-down package with a Cu base for superior thermal management. It can support a variety of.

QPA3055P Features

* Frequency Range: 2.9

* 3.5 GHz

* PSAT (PIN=25 dBm): 50 dBm

* PAE (PIN=25 dBm): > 53 %

* Power Gain (PIN=25 dBm): 25 dB

* Bias: VD = 30 V, IDQ = 300 mA, PIN = 25 dBm

* Alt. Bias: VD = 30 V, IDQ = 1500 mA, PIN = 22 dBm

* Characterized a

QPA3055P Datasheet (636.25 KB)

QPA3055P Datasheet Preview — Preview of QPA3055P PDF

Datasheet Details

Part number:

QPA3055P

Manufacturer:

Qorvo

File Size:

636.25 KB

Description:

100w s-band gan power amplifier.
