QPA3055D 100W S-Band GaN Power Amplifier

100 W S-Band GaN Power Amplifier (10 Pcs.) Evaluation Board for QPA3055D Data Sheet Rev. D, August 2021 1 of 17 www.qorvo.com ® Absolute Maximum Ratings Parameter Value / Range Drain Voltage (VD) 40 V Gate Voltage Range (VG) *8 to +1 V Peak Drain Current (ID) 11.7 A Average Dra.

QPA3055D ® 100 W S-Band GaN Power Amplifier Product Overview Qorvo’s QPA3055D is a high-power, S-band amplifier fabricated on Qorvo’s production 0.25 um GaN on SiC process (QGaN25). Covering 2.9 3.6 GHz, the QPA3055D provides 100 W of saturated output power and 25 dB of large-signal gain while achieving 58% poweradded efficiency. The QPA3055D can also support a variety of operating conditions to best support system requirements. With good thermal properties, it can support a range o.

QPA3055D Features

* Frequency Range: 2.9

* 3.6 GHz

* PSAT (PIN=25 dBm): > 50 dBm

* PAE (PIN=25 dBm): > 58 %

* Power Gain (PIN=25 dBm): > 25 dB

* Bias: VD = 30 V, IDQ = 300 mA, VG =

* 2.5 V typical

* Characterized at PW = 15 ms, DC = 30%, and PW = 100 us,

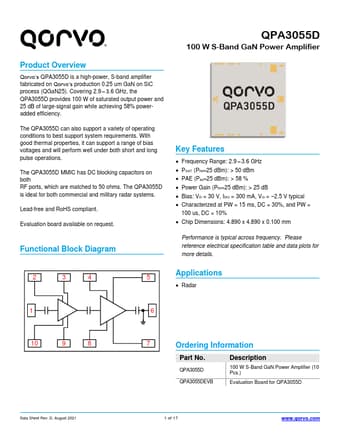

QPA3055D Datasheet (659.89 KB)

QPA3055D Datasheet Preview — Preview of QPA3055D PDF

Datasheet Details

Part number:

QPA3055D

Manufacturer:

Qorvo

File Size:

659.89 KB

Description:

100w s-band gan power amplifier.
