QPA3248

CATV Power Doubler Hybrid 1003MHz 25dB

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Qorvo QPA3248 1GHZ 25DB POWER DOUBLER HYBRID DigiKey 0 50 units
$75.88

QPA3248 Datasheet (425.04 KB)

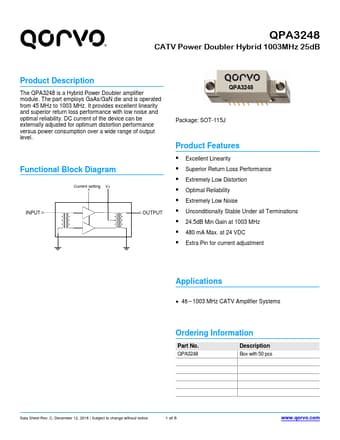

Preview of QPA3248 PDF Datasheet

Datasheet Details

Part number:

QPA3248

Manufacturer:

Qorvo

File Size:

425.04 KB

Description:

Catv power doubler hybrid 1003mhz 25db

QPA3248 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Extremely Low Noise

* Unconditionally Stable Under all Terminations

* 24.5dB Min Gain at 1003 MHz

* 480 mA Max. at 24 VDC

* Extra Pin for current adjustment

QPA3248 General Description

The QPA3248 is a Hybrid Power Doubler amplifier module. The part employs GaAs/GaN die and is operated from 45 MHz to 1003 MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. DC current of the device can be externally adjusted for optimum .
