QPA3070 150W GaN Power Amplifier

2.9 * 3.5 GHz 150 W GaN Power Amplifier (10 Pcs.) 250 piece 7” reel Evaluation Board for QPA3070 Data Sheet Rev. A, April 2020 | Subject to change without notice 1 of 19 © 2020 Qorvo US, Inc. All rights reserved. Confidential www.qorvo.com Preliminary QPA3070 ® 2.9 * 3.5 GHz .

Preliminary QPA3070 ® 2.9 3.5 GHz 150 W GaN Power Amplifier Product Overview Qorvo’s QPA3070 is a packaged, high-power S-band amplifier fabricated on Qorvo’s production 0.25 um GaN on SiC process (QGaN25HV). Covering 2.9 3.5 GHz, the QPA3070 provides 52 dBm of saturated output power and 28 dB of large-signal gain while achieving 58% poweradded efficiency. The QPA3070 is packaged in a 7 mm x 7 mm 48-pin plastic overmolded package. It can support a variety of operating cond.

QPA3070 Features

* Frequency Range: 2.9

* 3.5 GHz

* PSAT (PIN=24 dBm): 52 dBm

* PAE (PIN=24 dBm): 58 %

* Power Gain (PIN=24 dBm): 28 dB

* Bias: VD = 50 V, IDQ = 422 mA

* Package Dimensions:7.00 x 7.00 x 0.85 mm Performance is typical across frequency. Please r

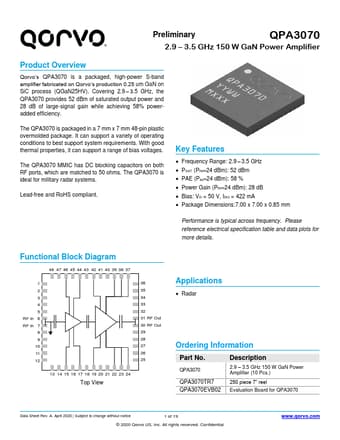

QPA3070 Datasheet (755.49 KB)

QPA3070 Datasheet Preview — Preview of QPA3070 PDF

Datasheet Details

Part number:

QPA3070

Manufacturer:

Qorvo

File Size:

755.49 KB

Description:

150w gan power amplifier.
