QPA3223

CATV Power Doubler Hybrid Low Current 1003MHz

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Qorvo QPA3223 1GHZ 23DB GAIN LOW CURRENT POWER DigiKey 0 50 units
$75.88

QPA3223 Datasheet (215.09 KB)

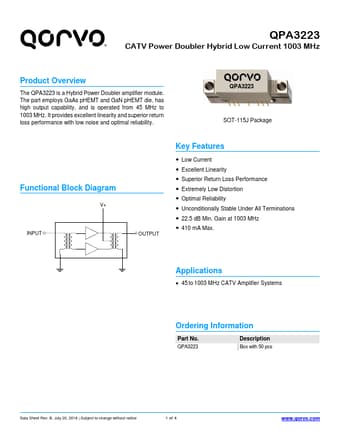

Preview of QPA3223 PDF Datasheet

Datasheet Details

Part number:

QPA3223

Manufacturer:

Qorvo

File Size:

215.09 KB

Description:

Catv power doubler hybrid low current 1003mhz

QPA3223 Features

* Low Current

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Unconditionally Stable Under All Terminations

* 22.5 dB Min. Gain at 1003 MHz

* 410 mA Max. Applications

QPA3223 General Description

Box with 50 pcs Data Sheet Rev. B, July 20, 2018 | Subject to change without notice 1 of 4 www.qorvo.com QPA3223 ® CATV Power Doubler Hybrid Low Current 1003 MHz Absolute Maximum Ratings Parameter Value / Range RF Input Voltage (single tone) 75 dBmV DC Supply Over-Voltage (5 minutes) +3.
