QPA2640D 8 Watt GaN Power Amplifier

QPA2640D 8 Watt GaN Amplifier QPA2640DEVB01 Evaluation Board for QPA2640D Data Sheet Rev. D, October 2023 | Subject to change without notice 1 of 23 © 2023 Qorvo US, Inc. All rights reserved. Confidential www.qorvo.com Absolute Maximum Ratings Parameter Drain Voltage (VD) Gate Voltage Range.

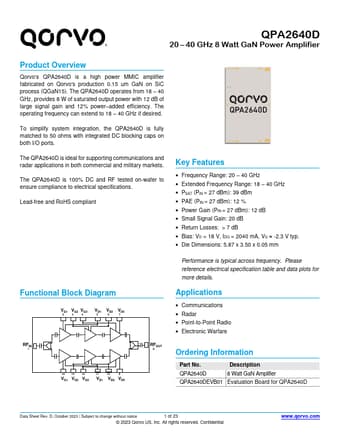

QPA2640D 20 40 GHz 8 Watt GaN Power Amplifier Product Overview Qorvo's QPA2640D is a high power MMIC amplifier fabricated on Qorvo's production 0.15 um GaN on SiC process (QGaN15). The QPA2640D operates from 18 40 GHz, provides 8 W of saturated output power with 12 dB of large signal gain and 12% power added efficiency. The operating frequency can extend to 18 40 GHz if desired. To simplify system integration, the QPA2640D is fully matched to 50 ohms with .

QPA2640D Features

* Frequency Range: 20

* 40 GHz

* Extended Frequency Range: 18

* 40 GHz

* PSAT (PIN = 27 dBm): 39 dBm

* PAE (PIN = 27 dBm): 12 %

* Power Gain (PIN = 27 dBm): 12 dB

* Small Signal Gain: 20 dB

* Return Losses: > 7 dB

* Bias
