QPA9119 Datasheet, Amplifier, TriQuint Semiconductor

QPA9119 Features

  • Amplifier
  • 400-4200 MHz
  • +27.2 dBm P1dB
  • +44 dBm Output IP3
  • 17 dB Gain at 2140 MHz
  • +5 V Single Supply, 130 mA ICQ
  • Internal RF overdrive pr

PDF File Details

Part number:

QPA9119

Manufacturer:

TriQuint Semiconductor

File Size:

883.87kb

Download:

📄 Datasheet

Description:

High linearity amplifier. The QPA9119 is a high linearity driver amplifier in a lowcost, RoHS compliant, surface mount package. This InGaP/GaAs HBT delivers hi

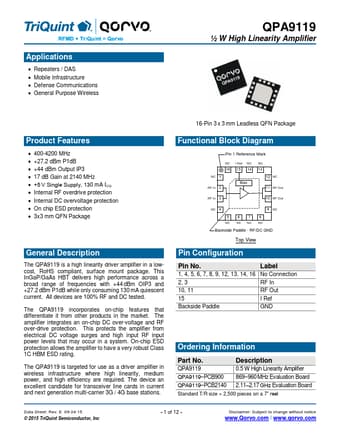

Datasheet Preview: QPA9119 📥 Download PDF (883.87kb)
Page 2 of QPA9119 Page 3 of QPA9119

QPA9119 Application

  • Applications
  • Repeaters / DAS
  • Mobile Infrastructure
  • Defense Communications
  • General Purpose Wireless QPA9119
