QPA9226 Datasheet, Pa, Qorvo

QPA9226 Features

  • Pa
  • 2.5 
      – 2.7 GHz Frequency Range
  • Fully integrated, 3-Stage Power Amp

PDF File Details

Part number:

QPA9226

Manufacturer:

Qorvo

File Size:

525.09kb

Download:

📄 Datasheet

Description:

High linearity 0.25w small cell pa. The QPA9226 is a high-linearity three-stage power amplifier in a low-cost surface-mount package with on-chip bias control and tempera

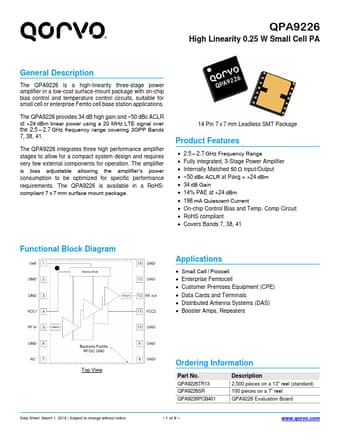

Datasheet Preview: QPA9226 📥 Download PDF (525.09kb)
Page 2 of QPA9226 Page 3 of QPA9226

QPA9226 Application

  • Applications The QPA9226 provides 34 dB high gain and
  • 50 dBc ACLR at +24 dBm linear power using a 20 MHz LTE signal over the 2.5 
