- Description
- 0.5W Driver Amplifier
QPA9122 Description

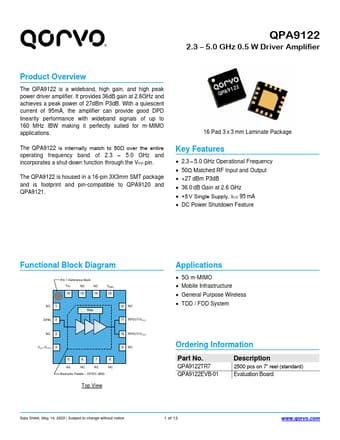

QPA9122 ® 2.3 * 5.0 GHz 0.5 W Driver Amplifier Product Overview The QPA9122 is a wideband, high gain, and high peak power driver amplifier..
2500 pcs on 7” reel (standard) Evaluation Board
Data Sheet, May 14, 2020 | Subject to change without notice
1 of 12
www.
QPA9122 Features
* 2.3
* 5.0 GHz Operational Frequency
* 50Ω Matched RF Input and Output
* +27 dBm P3dB
* 36.0 dB Gain at 2.6 GHz
* +5 V Single Supply, ICQ 95 mA
* DC Power Shutdown Feature
Functional Block Diagram
Pin 1 Reference Mark
VPD
NC
NC
16
15
1
QPA9122 Applications
* 16 Pad 3 x 3 mm Laminate Package
The QPA9122 is internally match to 50Ω over the entire operating frequency band of 2.3
* 5.0 GHz and incorporates a shut-down function through the VPD pin. The QPA9122 is housed in a 16-pin 3X3mm SMT package and is footprint and pin-compatible to QPA9120 a
