QPA9127 High Linearity Gain Block

2,500 pieces on a 7” reel (standard) Evaluation Board Datasheet Rev. C, February 26, 2024, | Subject to change without notice 1 of 12 www.qorvo.com QPA9127 High Linearity Gain Block Absolute Maximum Ratings Parameter Rating Storage Temperature *65 °C to +150 °C RF Input Power, CW, .

QPA9127 High Linearity Gain Block Product Overview The QPA9127 is a cascadable, high linearity gain block amplifier in a low-cost surface mount package. At 3.5 GHz, the amplifier provides 20 dB gain, +35 dBm OIP3 and 1.4 dB Noise Figure while drawing 70 mA current from a 5V supply. The QPA9127 provides very flat gain across a broad range of frequencies with the integration of a shut-down biasing capability to allow for operation for TDD applications. The low noise figure and high linearity perf.

QPA9127 Features

* 1.0

* 6.0 GHz Operational

* 50Ω Matched RF Input and Output

* 0.3dB Gain Flatness over 400 MHz Bandwidth

* 20 dB Gain

* +35 dBm Output IP3

* +19.5 dBm P1dB

* Noise Figure 1.4dB

* 1.8V Logic Compatible Shutdown Control Functional Block Diagram Applications

QPA9127 Datasheet (2.16 MB)

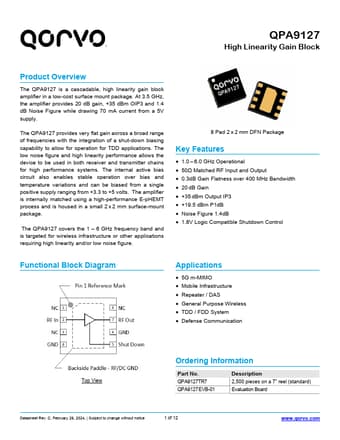

QPA9127 Datasheet Preview — Preview of QPA9127 PDF

Datasheet Details

Part number:

QPA9127

Manufacturer:

Qorvo

File Size:

2.16 MB

Description:

High linearity gain block.
