QPA9942 Datasheet, Amplifier, qorvo

QPA9942 Features

  • Amplifier
  • 3300 
      – 3800 MHz
  • 31 dB gain typical cross the band
  • Over 35.3 dBm P3dB
  • 25.6% PAE at +28 dBm power output
  • <-50 dBc ACPR DP

PDF File Details

Part number:

QPA9942

Manufacturer:

qorvo

File Size:

1.64MB

Download:

📄 Datasheet

Description:

4w high-efficiency amplifier. 2500 pcs on a 13” reel 3300-3800 MHz EVB 1 of 14 www.qorvo.com QPA9942 ® 3300 - 3800 MHz 4 W High-Efficiency Amplifier Absolute

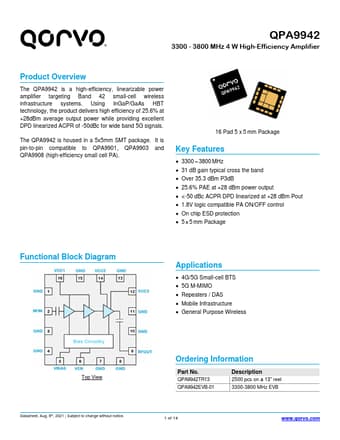

Datasheet Preview: QPA9942 📥 Download PDF (1.64MB)
Page 2 of QPA9942 Page 3 of QPA9942

QPA9942 Application

  • Applications
  • 4G/5G Small-cell BTS
  • 5G M-MIMO
  • Repeaters / DAS
  • Mobile Infrastructure
  • General Purpose
