QPA9901

4W High-Efficiency Amplifier

QPA9901 Features

* 2110 

*  2200MHz

* Up to 60MHz IBW capability

* 36.5dB Gain typical

* 32% PAE at +28dBm power output

QPA9901 General Description

2500 on reel 2110-2200 MHz EVB 1 of 14 www.qorvo.com QPA9901 ® 2110-2200MHz 4 W High-Efficiency Amplifier Absolute Maximum Ratings Recommended Operating Conditions Parameter Rating Storage Temperature

*55 to +125 °C RF Input Power, Pulsed CW, 50 Ω (1) +10 dBm Device Voltage (VC.

QPA9901 Datasheet (1.62 MB)

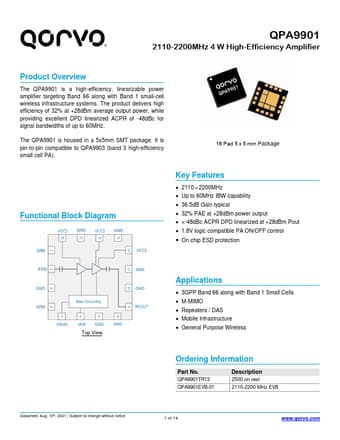

Preview of QPA9901 PDF

Datasheet Details

Part number:

QPA9901

Manufacturer:

Qorvo

File Size:

1.62 MB

Description:

4w high-efficiency amplifier.
QPA9901 ® 2110-2200MHz 4 W High-Efficiency Amplifier Product Overview The QPA9901 is a high-efficiency, linearizable power amplifier targeting Band.
