2500pcs on 13” reel 2300-2400 MHz EVB Datasheet, Aug 10th, 2021 | Subject to change without notice 1 of 14 www.qorvo.com QPA9940 ® 2300-2400MHz 4 W High-Efficiency Amplifier Absolute Maximum Ratings Parameter Rating Storage Temperature -55 to +125 °C RF Input Power, Pulsed CW, 50 Ω(1) +.

QPA9940 ® 2300-2400MHz 4 W High-Efficiency Amplifier Product Overview The QPA9940 is a high-efficiency, linearizable power amplifier targeting Band 40 small-cell wireless infrastructure systems. Using InGaP/GaAs HBT technology, the product delivers high efficiency of 31% at +28dBm average output power while providing excellent DPD linearized ACPR of -50 dBc for signal bandwidths of up to 100MHz. The QPA9940 is housed in a 5x5mm SMT package. It is pin-to-pin compatible to QPA9901, QPA9903 and .

QPA9940 Features

* 2300

* 2400 MHz

* 34.5 dB Gain

* Over 36 dBm P3dB

* 31% PAE at +28 dBm power output

* -50 dBc ACPR DPD Linearized at +28 dBm Power Output with 5-carrier signal

* 1.8V Logic Compatible PA ON/OFF Control

* On Chip ESD Protection

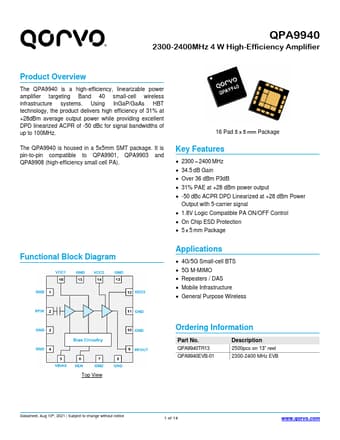

QPA9940 Datasheet (1.58 MB)

QPA9940 Datasheet Preview — Preview of QPA9940 PDF

Datasheet Details

Part number:

QPA9940

Manufacturer:

Qorvo

File Size:

1.58 MB

Description:

4w high-efficiency amplifier.
