QPA9907 - 4W High-Efficiency Amplifier

Description

Data Sheet, Jun.

30th, 2021 | Subject to change without notice.

2.7 GHz 4 W High-Efficiency Amplifier Absolute Maximum Ratings Parameter Rating Storage Temperature -55 to +125 °C RF Input Power, Pulsed CW

Features

  • 2.5.
  • 2.7 GHz.
  • 34.5 dB gain.
  • Over 35 dBm P3dB.
  • 29.5% PAE at +28 dBm power output.
  • -51 dBc ACPR DPD linearized at +28 dBm power output with 5-carrier signal.
  • 1.8V logic compatible PA ON/OFF control.
  • On chip ESD protection.
  • 5 x 5 mm Package Functional Block Diagram.

📥 Download Datasheet

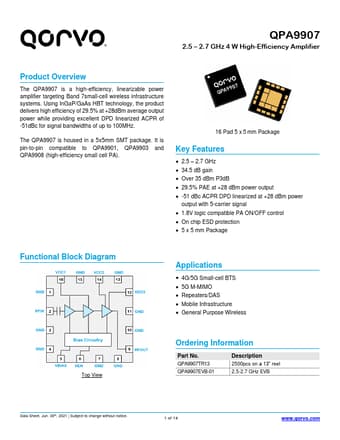

Datasheet preview – QPA9907

Datasheet Details

Part number QPA9907
Manufacturer Qorvo
File Size 1.70 MB
Description 4W High-Efficiency Amplifier
Datasheet download datasheet QPA9907 Datasheet
Additional preview pages of the QPA9907 datasheet.

📁 Similar Datasheet

  • QPA9119 - High Linearity Amplifier (TriQuint Semiconductor)
  • QPA1013D - 10W GaN Power Amplifier (TriQuint)
  • QPA2237 - 10W GaN Power Amplifier (TriQuint Semiconductor)
  • QPA2626 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628D - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA3230 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA3240 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA4263A - DC to 3500MHz CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4363A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
Other Datasheets by Qorvo
  • QPA9901 - 4W High-Efficiency Amplifier
  • QPA9940 - 4W High-Efficiency Amplifier
  • QPA9942 - 4W High-Efficiency Amplifier
  • QPA9970D - 4.3W GaN on SiC Power Amplifier Die
  • QPA9119 - High Linearity Amplifier
  • QPA9120 - High Gain High Linearity Driver Amplifier
  • QPA9121 - 0.5W Driver Amplifier
  • QPA9122 - 0.5W Driver Amplifier

Full PDF Text Transcription

Click to expand full text
QPA9907 ® 2.5 – 2.7 GHz 4 W High-Efficiency Amplifier Product Overview The QPA9907 is a high-efficiency, linearizable power amplifier targeting Band 7small-cell wireless infrastructure systems. Using InGaP/GaAs HBT technology, the product delivers high efficiency of 29.5% at +28dBm average output power while providing excellent DPD linearized ACPR of -51dBc for signal bandwidths of up to 100MHz. The QPA9907 is housed in a 5x5mm SMT package. It is pin-to-pin compatible to QPA9901, QPA9903 and QPA9908 (high-efficiency small cell PA). 16 Pad 5 x 5 mm Package Key Features • 2.5 – 2.7 GHz • 34.5 dB gain • Over 35 dBm P3dB • 29.5% PAE at +28 dBm power output • -51 dBc ACPR DPD linearized at +28 dBm power output with 5-carrier signal • 1.
