QPA9126 High Linearity Gain Block

2,500 pieces on a 7” reel (standard) Evaluation Board Datasheet, Rev. C February 6, 2024 | Subject to change without notice 1 of 13 www.qorvo.com QPA9126 ® High Gain High Linearity Driver Amplifier Absolute Maximum Ratings Parameter Rating Storage Temperature *65 °C to +150 °C RF.

QPA9126 ® High Linearity Gain Block Product Overview The QPA9126 is a cascadable, high linearity gain block amplifier in a low-cost surface mount package. At 3.5 GHz, the amplifier provides 16 dB gain, +35.5 dBm OIP3 and 1.4 dB Noise Figure while drawing 70 mA current from a 5V supply. The QPA9126 provides very flat gain across a broad range of frequencies with the integration of a shut-down biasing capability to allow for operation for TDD applications. The low noise figure and high linearit.

QPA9126 Features

* 1.0

* 6.0 GHz Operational

* 50Ω Matched RF Input and Output

* 0.3dB Gain Flatness over 400 MHz Bandwidth

* 16 dB Gain

* +35 dBm Output IP3

* +20 dBm P1dB

* 1.4dB Noise Figure

* 1.8V Logic Compatible Shutdown Control Functiona

QPA9126 Datasheet (1.57 MB)

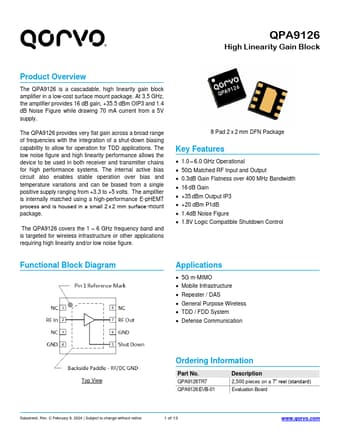

QPA9126 Datasheet Preview — Preview of QPA9126 PDF

Datasheet Details

Part number:

QPA9126

Manufacturer:

Qorvo

File Size:

1.57 MB

Description:

High linearity gain block.
