SX1308 - High Efficiency 1.2MHz 2A Step Up Converter

Description

The SX1 308 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications.

The SX1308 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height.

Features

  • Integrated 80mΩ Power MOSFET.
  • 2V to 24V Input Voltage.
  • 1.2MHz Fixed Switching Frequency.
  • Internal 4A Switch Current Limit.
  • Adjustable Output Voltage.
  • Internal Compensation.
  • Up to 28V Output Voltage.
  • Automatic Pulse Frequency Modulation Mode at Light Loads.
  • up to 96% Efficiency.
  • Available in a 6-Pin SOT23-6 Package.

📥 Download Datasheet

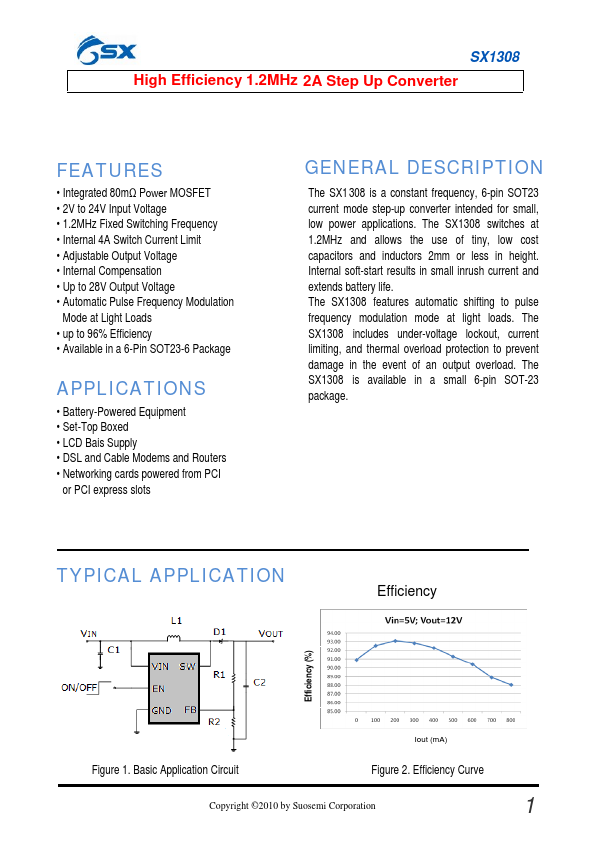

Datasheet preview – SX1308

Datasheet Details

Part number SX1308
Manufacturer Suosemi
File Size 699.54 KB
Description High Efficiency 1.2MHz 2A Step Up Converter
Datasheet download datasheet SX1308 Datasheet

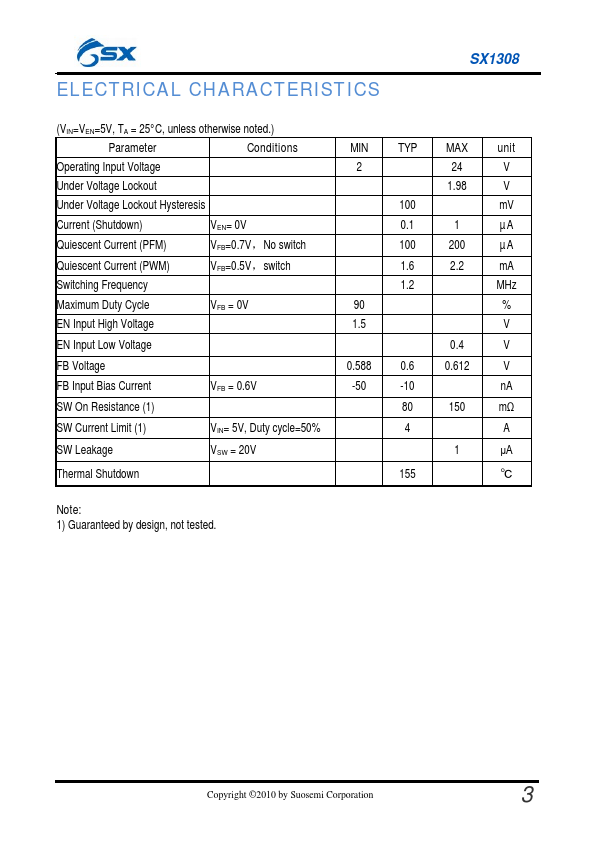

Additional preview pages of the SX1308 datasheet.
