SX1211 - Ultra-Low Power Integrated UHF Transceiver

Description

The SX1211 is a low cost single-chip transceiver operating in the frequency ranges from 863-870, 902928 MHz and 950-960 MHz.

The SX1211 is optimized for very low power consumption (3mA in receiver mode).

It incorporates a baseband modem with data rates up to 200 kb/s.

Features

  • include a sixty-four byte FIFO, packet handling, automatic CRC generation and data whitening. Its highly integrated architecture allows for minimum external component count whilst maintaining design flexibility. All major RF communication parameters are programmable and most of them may be dynamically set. It complies with European (ETSI EN 300-220 V2.1.1) and North American (FCC part 15.247 and 15.249) regulatory standards. Features Low Rx power consumption: 3mA Low Tx power consumption: 25 mA.

📥 Download Datasheet

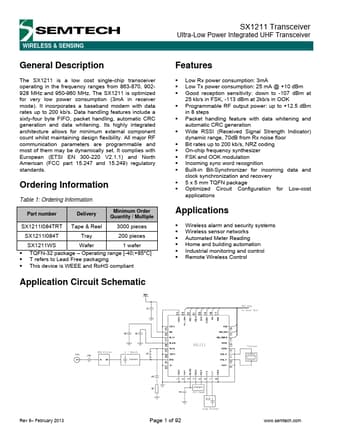

Datasheet preview – SX1211

Datasheet Details

Part number SX1211
Manufacturer Semtech Corporation
File Size 1.39 MB
Description Ultra-Low Power Integrated UHF Transceiver
Datasheet download datasheet SX1211 Datasheet
Additional preview pages of the SX1211 datasheet.

📁 Similar Datasheet

  • SX1208 - Low Power Integrated UHF Transceiver (Semtech)
  • SX1231H - Low Power Integrated UHF Transceiver (Semtech)
  • SX1238 - Fully Integrated Transceiver (Semtech)
  • SX1240 - Low Cost Integrated Transmitter IC (Semtech)
  • SX1242 - Low Cost Integrated Transmitter IC (Semtech)
  • SX1243 - Low Cost Integrated Transmitter IC (Semtech)
  • SX1257 - Low Power Digital I and Q RF Multi-PHY Mode Transceiver (Semtech)
  • SX1261 - RF Transceiver (Semtech)
  • SX1262 - RF Transceiver (Semtech)
  • SX1268 - RF Transceiver (Semtech)
Other Datasheets by Semtech Corporation
  • SX1210 - Ultra-Low Power Integrated UHF Receiver
  • SX1212 - Ultra-Low Power Integrated 300-510MHz Transceiver
  • SX1213 - Ultra-Low Power Integrated UHF Receiver
  • SX1223 - 425 - 475 MHz / 850 - 950 MHz Integrated UHF Transmitter
  • SX1230 - Integrated Transmitter IC
  • SX1231 - Low Power Integrated UHF Transceiver
  • SX1231J - Low Power Integrated UHF Transceiver
  • SX1233 - High Bit Rate Transceiver

Full PDF Text Transcription

Click to expand full text
SX1211 Transceiver www.DataSheet4U.com Ultra-Low Power Integrated UHF Transceiver ADVANCED COMMUNICATIONS & SENSING General Description The SX1211 is a low cost single-chip transceiver operating in the frequency ranges from 863-870, 902928 MHz and 950-960 MHz. The SX1211 is optimized for very low power consumption (3mA in receiver mode). It incorporates a baseband modem with data rates up to 200 kb/s. Data handling features include a sixty-four byte FIFO, packet handling, automatic CRC generation and data whitening. Its highly integrated architecture allows for minimum external component count whilst maintaining design flexibility. All major RF communication parameters are programmable and most of them may be dynamically set. It complies with European (ETSI EN 300-220 V2.1.
