SX1240 - Low Cost Integrated Transmitter IC

Description

The SX1240 is an ultra-low-cost, fully integrated FSK or OOK compatible transmitter suitable for operation in the 418, 434 and 868 MHz licence free ISM bands.

For applications where economy is paramount, the SX1240 may be used without the requirement for configuration via an MCU.

Features

  • +10 dBm or 0 dBm Configurable output power Bit rates up to 100 kbps FSK and OOK modulation 2 Preconfigured Modes for Operation without MCU 433.92 MHz OOK & 868.3 MHz FSK.

📥 Download Datasheet

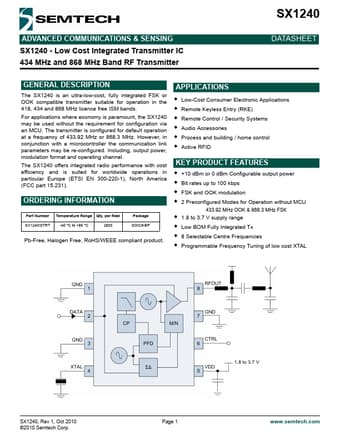

Datasheet preview – SX1240

Datasheet Details

Part number SX1240
Manufacturer Semtech
File Size 620.71 KB
Description Low Cost Integrated Transmitter IC
Datasheet download datasheet SX1240 Datasheet
Additional preview pages of the SX1240 datasheet.

📁 Similar Datasheet

  • SX1210 - Ultra-Low Power Integrated UHF Receiver (Semtech Corporation)
  • SX1211 - Ultra-Low Power Integrated UHF Transceiver (Semtech Corporation)
  • SX1212 - Ultra-Low Power Integrated 300-510MHz Transceiver (Semtech Corporation)
  • SX1213 - Ultra-Low Power Integrated UHF Receiver (Semtech Corporation)
  • SX1223 - 425 - 475 MHz / 850 - 950 MHz Integrated UHF Transmitter (Semtech Corporation)
  • SX1230 - Integrated Transmitter IC (Semtech Corporation)
  • SX1231 - Low Power Integrated UHF Transceiver (Semtech Corporation)
  • SX1231J - Low Power Integrated UHF Transceiver (Semtech Corporation)
  • SX1233 - High Bit Rate Transceiver (Semtech Corporation)
  • SX1236 - 137 MHz to 1020 MHz Low Power Bi-Band Transceiver (Semtech Corporation)
Other Datasheets by Semtech
  • SX1242 - Low Cost Integrated Transmitter IC
  • SX1243 - Low Cost Integrated Transmitter IC
  • SX1208 - Low Power Integrated UHF Transceiver
  • SX1231H - Low Power Integrated UHF Transceiver
  • SX1238 - Fully Integrated Transceiver
  • SX1257 - Low Power Digital I and Q RF Multi-PHY Mode Transceiver
  • SX1261 - RF Transceiver
  • SX1262 - RF Transceiver

Full PDF Text Transcription

Click to expand full text
SX1240 ADVANCED COMMUNICATIONS & SENSING DATASHEET SX1240 - Low Cost Integrated Transmitter IC 434 MHz and 868 MHz Band RF Transmitter GENERAL DESCRIPTION The SX1240 is an ultra-low-cost, fully integrated FSK or OOK compatible transmitter suitable for operation in the 418, 434 and 868 MHz licence free ISM bands. For applications where economy is paramount, the SX1240 may be used without the requirement for configuration via an MCU. The transmitter is configured for default operation at a frequency of 433.92 MHz or 868.3 MHz. However, in conjunction with a microcontroller the communication link parameters may be re-configured. Including, output power, modulation format and operating channel.
