SX1223

425 - 475 MHz / 850 - 950 MHz Integrated UHF Transmitter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Semtech Corporation SX1223I073TRT RF TX IC FSK 425-475MHZ 24WFQFN DigiKey 0 6000 units
$1.42

SX1223 Datasheet (367.20 KB)

Preview of SX1223 PDF Datasheet

Datasheet Details

Part number:

SX1223

Manufacturer:

Semtech Corporation

File Size:

367.20 KB

Description:

425 - 475 mhz / 850 - 950 mhz integrated uhf transmitter

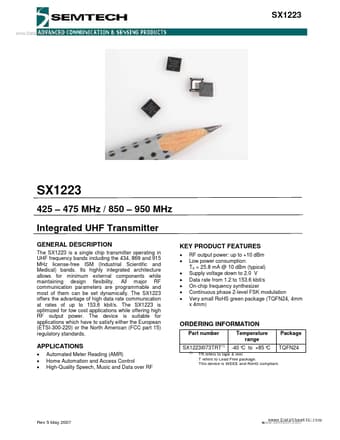

SX1223 Features

* RF output power: up to +10 dBm Low power consumption: TX = 25.8 mA @ 10 dBm (typical) Supply voltage down to 2.0 V Data rate from 1.2 to 153.6 kbit/s On-chip frequency synthesizer Continuous phase 2-level FSK modulation Very small

SX1223 General Description

The SX1223 is a single chip transmitter operating in UHF frequency bands including the 434, 869 and 915 MHz license-free ISM (Industrial Scientific and Medical) bands. Its highly integrated architecture allows for minimum external components while maintaining design flexibility. All major RF communi.
