SX1238 - Fully Integrated Transceiver

Description

The SX1238 is a fully integrated ISM band transceiver optimized for use in the (FCC Part 15) 915 MHz band in the US and 868 MHz band in Europe with a minimum of external components.

It offers a combination of high link budget and low current consumption in all operating modes.

Features

  • +27 dBm - 500 mW RF output power.
  • +27 dBm high efficiency PA.
  • Programmable bit rate up to 300kbps.
  • High sensitivity: -124 dBm at 1.2 kbps.
  • 863 - 870 MHz and 902 - 928 MHz.
  • 80 dB blocking Immunity.
  • Low current, 100nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK and OOK modulations.
  • Built-in bit synchronizer performing clock recovery.
  • Sync word recognition.
  • Preamble detection.
  • 115.

📥 Download Datasheet

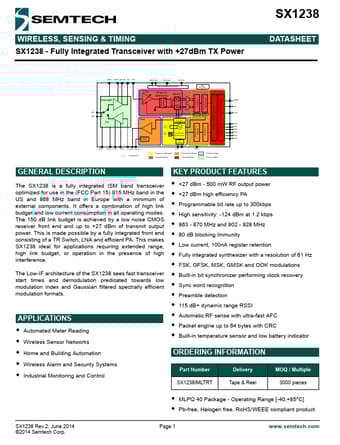

Datasheet preview – SX1238

Datasheet Details

Part number SX1238
Manufacturer Semtech
File Size 1.66 MB
Description Fully Integrated Transceiver
Datasheet download datasheet SX1238 Datasheet
Additional preview pages of the SX1238 datasheet.
