SX1230 - Integrated Transmitter IC

SX1230 Description

www.DataSheet.co.kr SX1230 ADVANCED COMMUNICATIONS & SENSING DATASHEET SX1230 - Integrated Transmitter IC Narrow/wideband 315 MHz, 434 MHz 868 MHz .
The SX1230 is a fully integrated transmitter which can operate in the 315, 434, 868 and 915 MHz licence free ISM bands.

SX1230 Features

* +17 dBm to -18 dBm Programmable output power. Bit rates up to 600 kbits / sec. FSK, GFSK, MSK, GMSK and OOK modulation. Stand-alone mode: No need for a host MCU. Consistent RF performance over a 1.8 to 3.7 V range. Low phase noise (-95 dBc/Hz at 50 kHz) with automated PLL calibration and fully integ

SX1230 Applications

* It also offers the u. ique adva. tage of . arrow-ba. d a. d wide-ba. d commu. icatio. i. a ra. ge of modulatio. formats. The SX1230 offers high RF output power a. d cha. . elized operatio. suited for the Europea. (ETSI EN 300-220-1), North America. (FCC part 15.231, 15.247 a. d 15.249) a. d Japa. ese (ARIB T-67)

📥 Download Datasheet

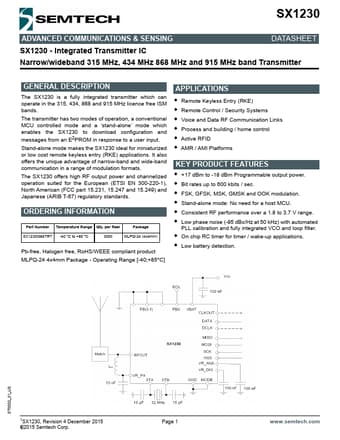

Preview of SX1230 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SX1230
Manufacturer
Semtech Corporation
File Size
1.10 MB
Datasheet
SX1230_SemtechCorporation.pdf
Description
Integrated Transmitter IC
