SX1233 Datasheet - Semtech Corporation

SX1233 - High Bit Rate Transceiver

The SX1233 is a highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands.

Its highly integrated architecture allows for a minimum of external components whilst maintaining

www.DataSheet.co.kr SX1233 ADVANCED COMMUNICATIONS & SENSING DATASHEET SX1233 High Bit Rate Transceiver Low Power Integrated UHF Transceiver VBAT1&2 VR_ANA VR_DIG RC Oscillator Σ/Δ Modulators Demodulator & Bit Synchronizer Decimation and & Filtering RESET Power Distribution System LNA Single to Differential Mixers RFIO Control Registers - Shift Registers - SPI Interface Packet Engine & 66 Bytes FIFO SPI RSSI GND Division by 2, 4 or 6 AFC RXTX DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 PA0 Ramp

SX1233 Features

* Programmable bit rate up to 600kbps (FSK) High Sensitivity: down to -120 dBm at 1.2 kbps High Selectivity: 16-tap FIR Channel Filter Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm, 80 dB Blocking Immu

SX1233_SemtechCorporation.pdf

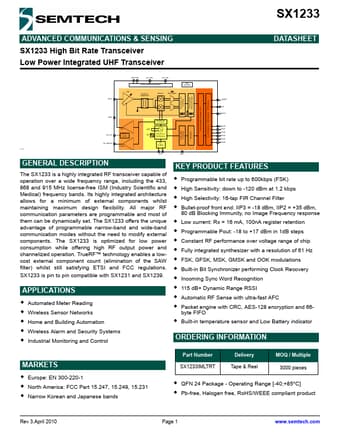

Preview of SX1233 PDF
SX1233 Datasheet Preview Page 2 SX1233 Datasheet Preview Page 3

Datasheet Details

Part number:

SX1233

Manufacturer:

Semtech Corporation

File Size:

1.28 MB

Description:

High bit rate transceiver.
