SX1208 - Low Power Integrated UHF Transceiver

Description

The SX1208 is a highly integrated RF transceiver capable of operation from 290MHz to 510MHz, including the 315 and 434 MHz license-free ISM (Industry Scientific and Medical) frequency bands.

Features

  • High Sensitivity: down to -124 dBm at 600 bps.
  • High Selectivity: 16-tap FIR Channel Filter.
  • Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm, 80 dB Blocking Immunity, no Image Frequency response.
  • Low current: Rx = 16 mA, 100nA register retention.
  • Programmable Pout: -18 to +20 dBm in 1dB steps.
  • Constant RF performance over voltage range of chip.
  • FSK Bit rates up to 100 kbps.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK.

📥 Download Datasheet

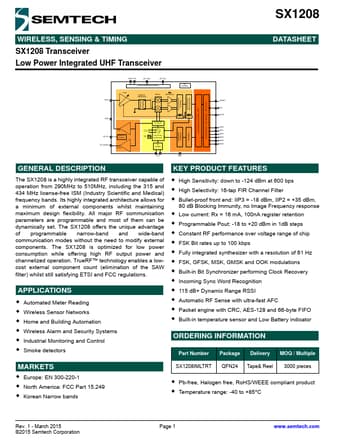

Datasheet preview – SX1208
